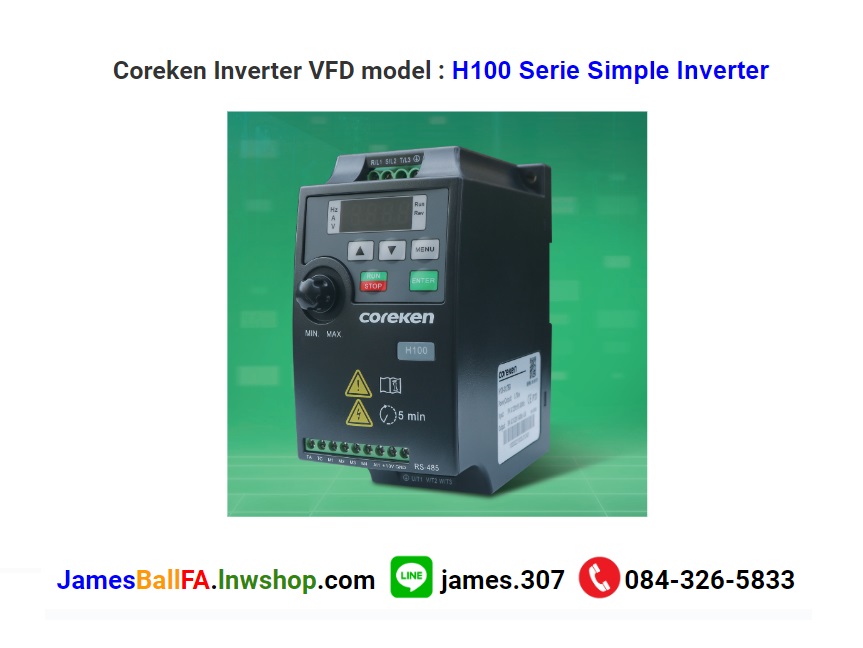

Coreken Inverter VFD model : H100 Serie Simple Inverter
ออกแบบใหม่ ช่วยประหยัดพื้นที่ได้ถึง 40%
รองรับการติดตั้งในรูปแบบต่างๆ และยังรองรับการติดตั้งกับรางในตู้ไฟฟ้า
มีพอร์ตการสื่อสารมาตรฐาน รองรับโปรโตคอลการสื่อสาร Modbus
|
Item
|
Specification
|
|
Basic function
|
Maximum frequency
|
600Hz
|
|
Carrier frequency
|
0.5kHz~16kHz;The carrier frequency is automatically adjusted based on the load features.
|
|
Input frequency resolution
|
Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.5%
|
|
Control mode
|
Voltage/Frequency(V/F) control
|
|
Overload capacity
|
Model G machine: 60s for 150% of the rated current, 1s for 180% of the rated current
|
|
Torque boost
|
Customized boost 0.1%-30.0%
|
|
V/F curve
|
Three methods: straight-line V/F curve; Multi-point V/F curve; N-power V/F curve (1.6 power, 2 power)
|
|
Acceleration and deceleration curve
|
Straight line or S-curve acceleration and deceleration mode; Four groups of acceleration/deceleration; time with the range of 0.0-6500.0s
|
|
DC braking
|
DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-36.0s
Braking action current value: 0.0%-100.0%
|
|
JOG control
|
Braking current: 0.0%~100.0%
JOG frequency range：0.00-50.00Hz
JOG acceleration/deceleration time: 0.0-6500.0s
|
|
Simple PLC, multi-wire segment
|
Up to 16 speeds can be achieved via the onboard PLC or control terminals
|
|
Onboard PID
|
It realize process-controlled closed loop control system easily
|
|
Auto voltage regulation(AVR)
|
It can keep constant output voltage automatically when the mains voltage changes
|
|
Overvoltage/Overcurrent stall control
|
The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/overcurrent.
|
|
