Two-Stage Trough Liquid Distributor Has Anti-Clogging Performance

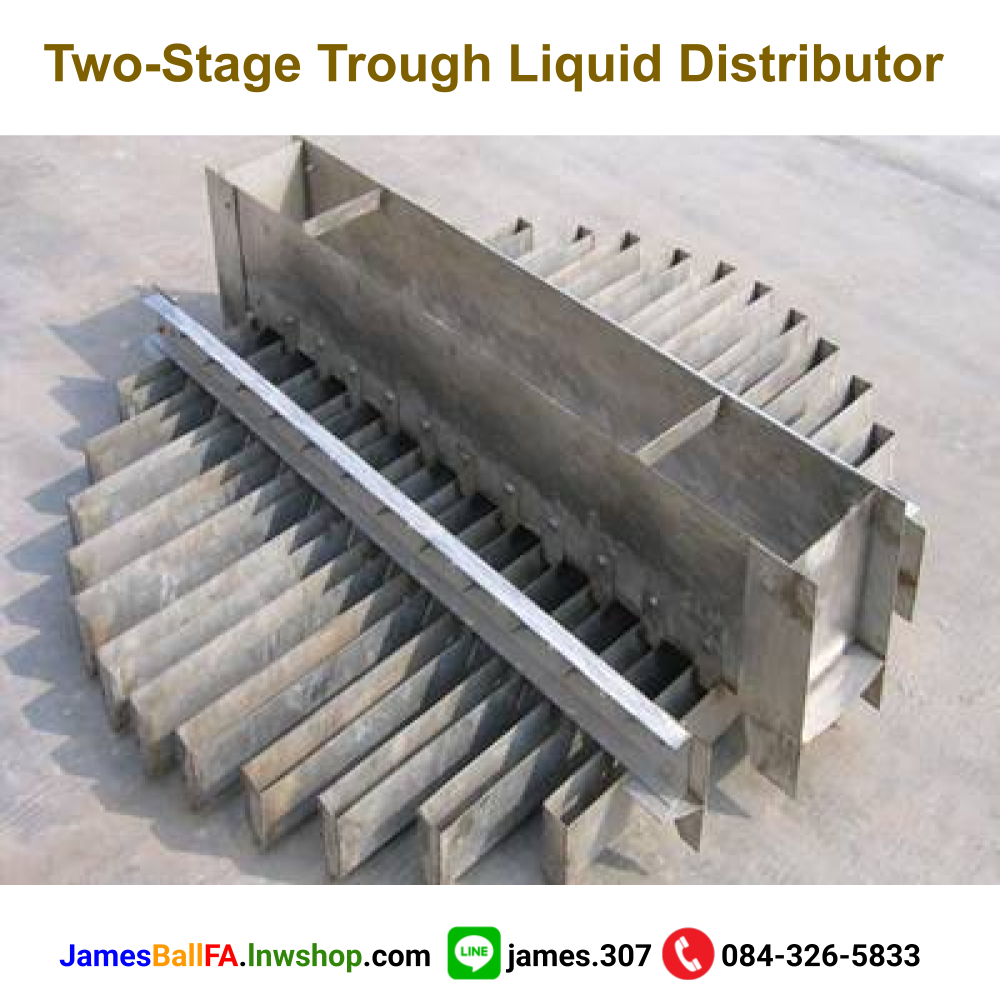

Two-Stage trough liquid distributor is composed by major trough (primary trough) and parting troughs (secondary trough). The major trough is set on the secondary trough. Reflux and charging can enter into the major trough through feed pipe which is hanging on the major trough, and then be proportionally allocated to each parting trough. Two-Stage trough liquid distributor has the advantages of high optional flexibility, good anti-clogging and distributing performance. Due to these advantages, two-stage trough liquid distributor is widely used in many fields to provide an uniform composition for redistribution.

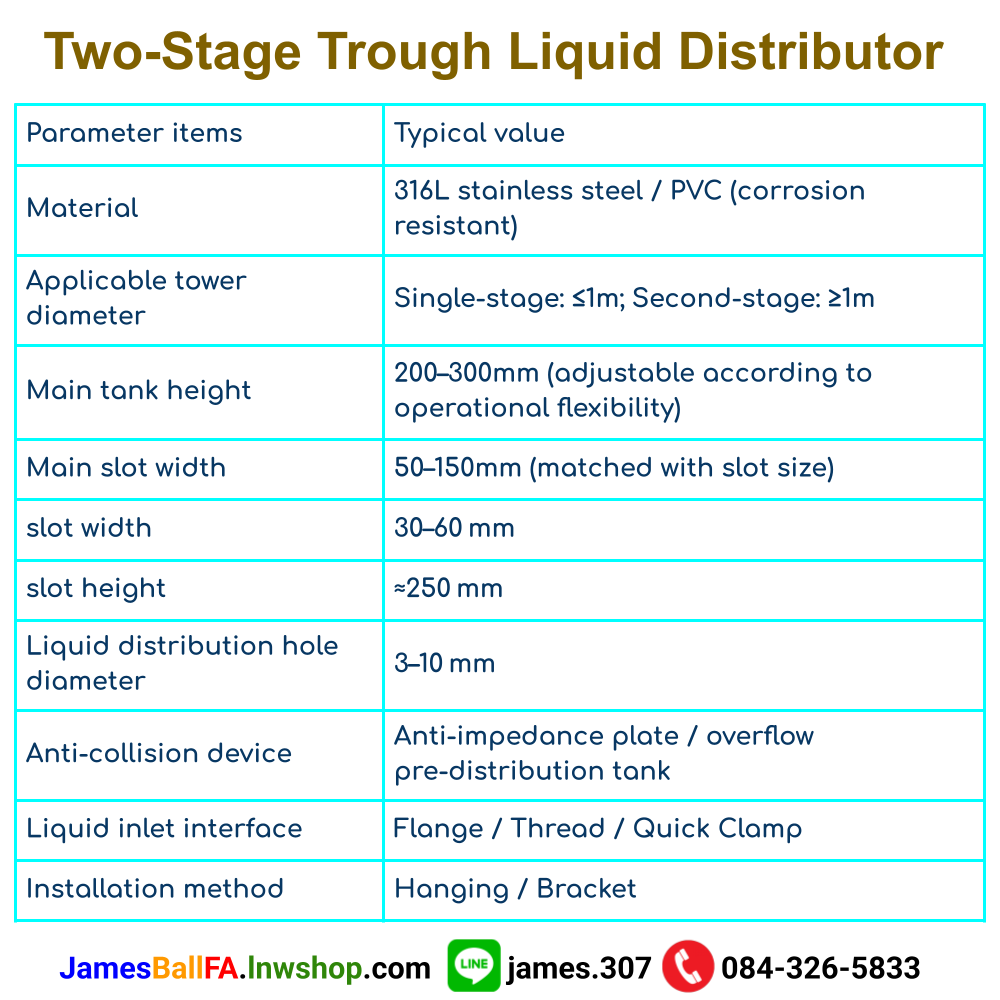

Specification

• Column diameter: more than or equal to 36 inch.
• Specific liquid load: 2 to 40 gpm/ft².
• System fouling tendency: low.
• Turndown ratio: 10:1.
• Pressure drop: 3.5 to 4.2.

Notice: Two-Stage trough liquid distributor can be customized upon on your needs.

Features

• Two-Stage trough liquid distributor has high turndown rates and low pressure drop.
• Two-Stage trough liquid distributor has good anti-clogging performance.
• Two-Stage trough liquid distributor provides more open area for vapor flow & are easier to support.
• Two-Stage trough liquid distributor is suitable for high loaded columns requiring optimized separation of liquid and vapor.

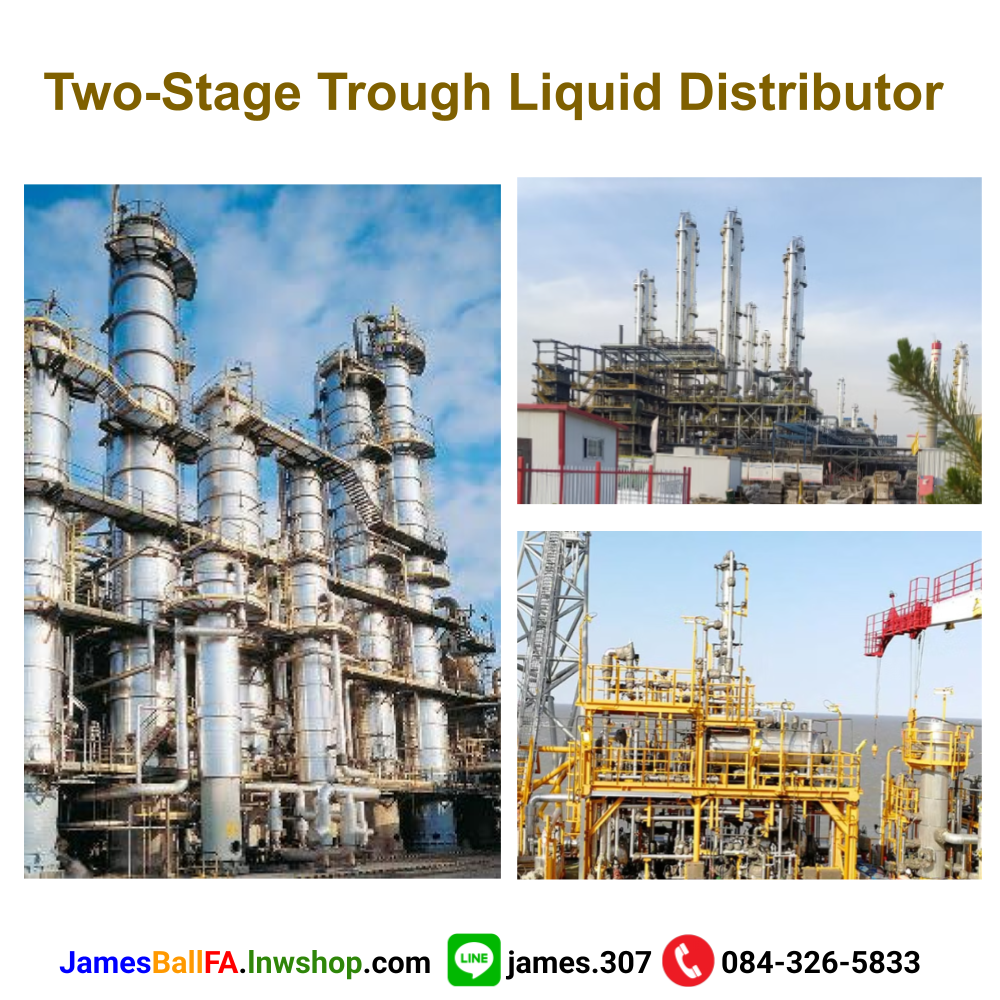

Application

Two-Stage trough liquid distributor is an ideal choice for separation, mixture or handling of vapor-liquid load, suspensions, emulsions, fouling or contaminated liquids.

Package

Packed in carton boxes.
