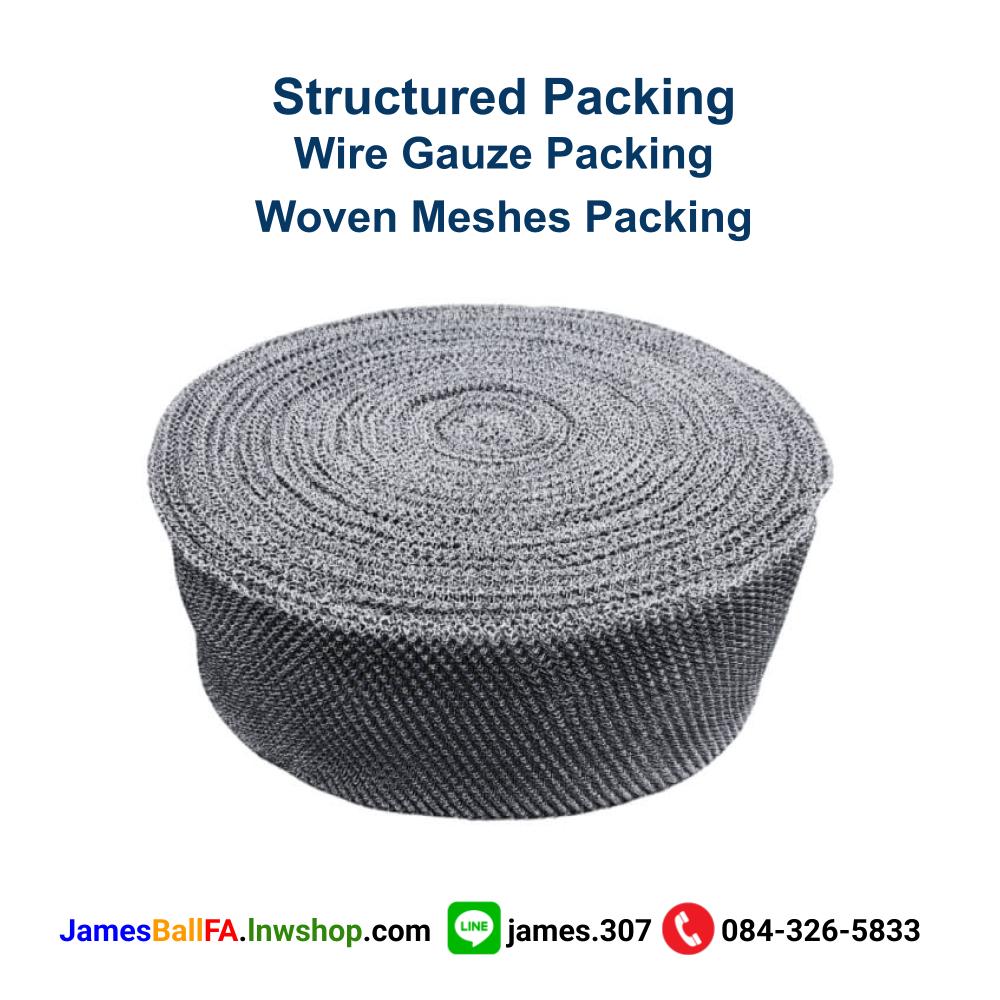

Wire Gauze Packings – Woven Meshes for High Separation Efficiency

Metal wire gauze structured packing is an important milestone of the development of clear and neat filling. This kind of filling consists of arranged wire mesh pieces pressed into corrugation. Obliquity of corrugation is 45° or 60° and the neighbor two pieces are of opposite directions. When filling into the column, upper and lower filling trays cross by 90. It has advantages of high effectiveness, low pressure drop and large flow rate. This product includes BX, CY types, generally used in vacuum distillation, normal pressure distillation and absorption processes of matters hard to separate or thermal sensitive.

The key advantage of wire gauze structured packing is the high separation efficiency even at very small liquid loads along with its low pressure drop and small liquid hold-up, making it very suitable for distillation of thermally sensitive products.

Specification

• Surface areas: 250 m²/m³, 500 m²/m³, 750 mm²/m³, 1000 m²/m³, 1200 m²/m³.
• Material: AISI304, AISI304L, AISI316, AISI316L, carbon steel, etc.

Feature

• Large specific surface area, high void ratio and light.
• Obliquity of gas passage is small and regular, so pressure drop is low.
• Good radial diffusion and sufficient gas contact.

Application

• Metal wire gauze packing is used for Fine chemical, flavors factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
• 250（AX） Precision rectification for high productive capacity and less theoretical plate number.
• 500（BX） Vacuum rectification for thermo sensitive system and hard separation system, especially suitable for rectification with pressure lower than 7KPa .
• 700（CY） Separation of isotopic compound and isomeric compound.
• Wire gauze structured packing is not suitable for fouling services and strongly corrosive media.
