Specification

• Material: Stainless Steel 304, 304L, 316, 316L, 410, Carbon Steel.
• Type: 125X/Y, 250X/Y, 350X/Y, 500X/Y, 700X/Y.

The metal packing is available in several designs:

• Smooth or textured surface.
• Perforated or imperforate surface.
• X- design or Y-design with 45° or 60° corrugation angles.
• N (standard model) or S (high performance model).

Application

The classic application fields for structured metal packing are processes with following operation conditions:

• Low liquid loads.
• High gas loads.
• Requirement for low pressure drop.

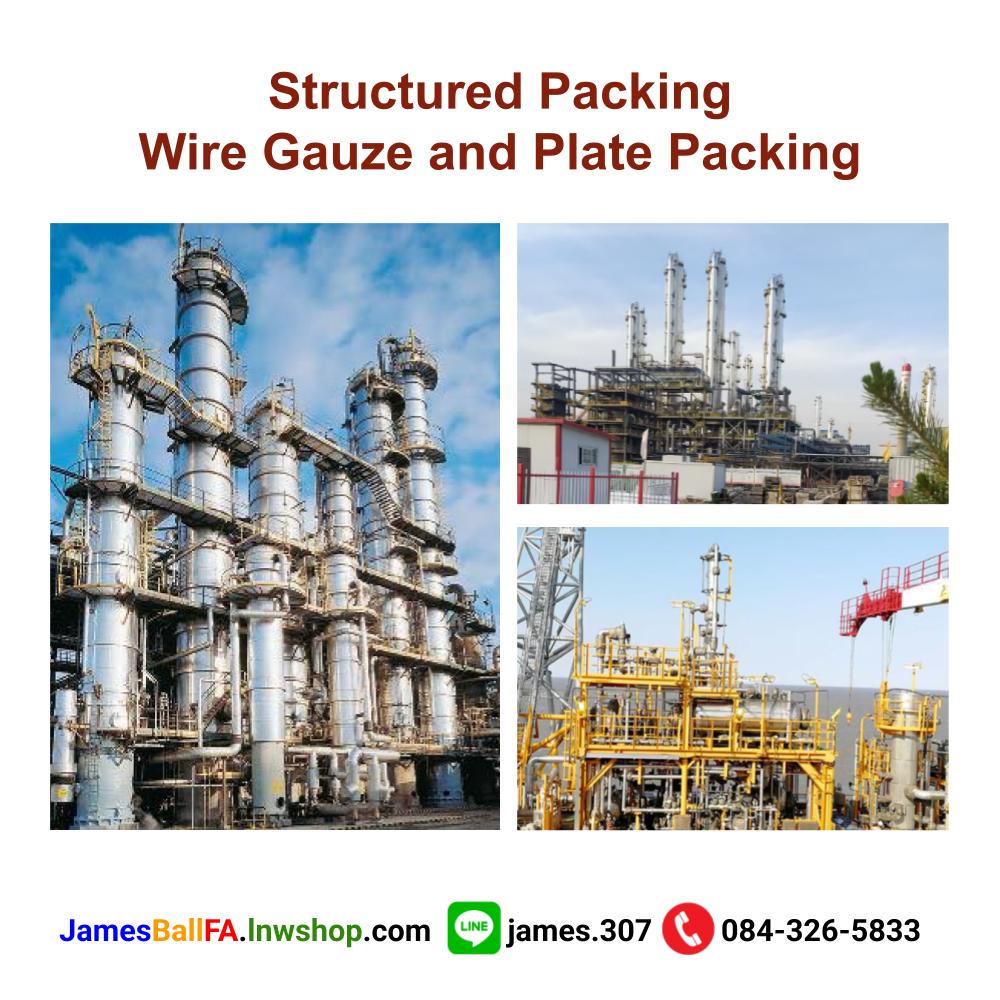

These conditions are common in many vacuum distillation and rectification processes as well as in amine scrubbers, and applications in the field of fine chemical, flavors factory, isomer separation, separation of thermally sensitive materials and testing tower.
